D43

Direct Thermal print & apply technology for products & cases


A warning alerts the user before the label roll need to be replaced. All applicator models are automatically folded away and the media sensor is opened when changing label roll.

A special designed air nozzle eliminates the need of a “blow pipe”. The clean and open design makes change of paper roll straight forward and simple.

After each time the print head has been lifted, the media sensor is automatically adjusted to secure correct label position on every package.

To play, press and hold the enter key. To stop, release the enter key.

  • Crisp, clear coding on glass, even at high line speeds, with VisiCode®, a unique set of parameters

Technical Specifications

  • Print technology: Direct Thermal

  • Maximum print width: 108 mm

  • Maximum print length: 350 mm

  • Label size (W x L): 30x20 mm to 118x400 mm

       (applicator specific)

  • Maximum media width: 120 mm

  • Printable area: 100% thanks to automatic rewind

       of each label

  • Applicators: BlowVAC, Belt, Tamp, eTamp,

       Wipe G2, Wipe90 G2, QuickTamp

  • Resolution: 300 dpi

  • Print speed: Printing speed Default 160 mm/s

       (standard max. 200 mm/s, optional max speed 300 mm/s)

  • Historically compensated print function:

       Built into the control unit

  • Heat compensated print function: Built into the control unit

  • Fonts: Truetype, Unicode

  • Barcodes: EAN-13, EAN-8, CODE128, GS1-128, GS1-Databar

       (+ Exp, Limit, Stack, Stack Omni, Exp Stack), Interleaved 2 of 5,

       UPCA​

  • 2D codes: Datamatrix, PDF-417, QR code

  • External dimensions, excl. applicator (LxWxH): 440x360x425 mm

  • Label roll outer diameter (max): 12" / 300 mm

  • Label roll core diameter: 3" / 76 mm

  • Label roll winding: Labels on the outside of the roll

  • Communication: Ethernet/LAN, USB, CANopen, RS-232

  • Operating temperature: +5°C to +40°C

  • Humidity: 20 to 85%, non-condensing

  • Mains supply: 110/240 VAC, 50/60 Hz

  • Air supply: 6-10 bar, clean and dry

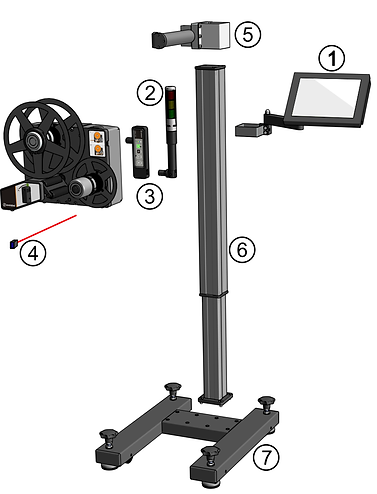

Accessories


1. Touch screen

    From the 7”, 12", 15" touch screen options, the operator can easily change products and settings.

2. Status beacon

    The status tower provides an easy way to monitor the machine status from a distance.

3. Control Panel

    From the Control panel the operator can easily stop, reset and start the printer.

4. Trigger sensor

    Evolabel offers a reflecting PNP trigger sensor from SICK, which fits most applications. The

    machine can interface to any 24V PNP trigger from other suppliers.

5. Mounting kit

    This is the standard robust stainless steel mounting kit from Evolabel. It will fit most applications. It

    is intended to be used with the pillar stand (6).

6. Pillar stand

    This pillar stand of anodized aluminium can either be mounted directly on the floor or onto the

    stand foot (7). The pillar stand is also available with motorized height adjustment.

7. Stand foot

    The stand foot is a robust powder coated aluminium foot with wheels and adjustable machine feet

    covered with rubber for good positional stability.
