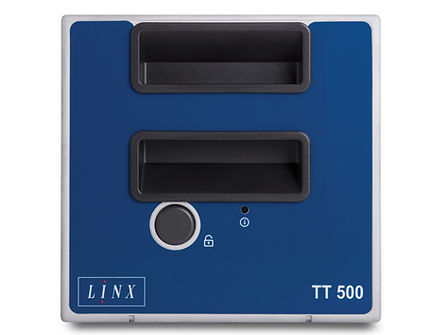

Linx TT500

Packaging printing - best before dates and batch codes

The Linx TT 500 is a simple printer designed for printing onto flexible materials including bags, pouches, labels and flow wrap, ideal when coding areas up to 1.26" x 3.94".

Low cost of ownership, increased uptime, easy to use.


Key benefits

  • Operates without compressed air reducing installation and operating costs while maintaining consistent print quality

  • Large range of ribbons to better meet your application and production line printing needs

  • Optimized ribbon usage with bi-directional stepper motors delivering more prints per ribbon

  • Lightweight, simple, push button ribbon cassette system for quick and easy ribbon changes

  • Optimal number of user maintainable parts that are easy to replace

  • Easy to set and maintain print quality with electronic pressure control

  • Simple cassette system minimizes errors during ribbon replacements

  • Easy to use color touch screen - fewer errors and hassle-free operation

  • Crisp, clear coding on glass, even at high line speeds, with VisiCode®, a unique set of parameters

Technical Specifications

Blue Gear.png

Printing Capability

  • Ribbon widths: .79in to 1.3in

  • Print area – intermittent motion mode: up to 1.26in (W) x 1.85in (L)

  • Print area – continuous motion mode: up to 1.26in (W) x 3.95in (L)

  • Maximum throughput: 150 prints per minute

  • Maximum ribbon length – 2297ft

  • Print speed - intermittent motion mode: 1.97in/sec to 11.81in/sec

  • Print speed - continuous motion mode: 1.57in/sec to 19.69in/sec

  • Ribbons: Range of types, colors, lengths and widths


Programming Features

  • Linx CLARiSOFT message design software

  • Barcodes

  • Fixed/variable text and numeric fields

  • Auto incrementing/ decrementing text, counters and barcodes

  • Basic shape drawing

  • Flexible date/time formats

  • Auto best before date calculation

  • Formats for shift coding

  • Multiple graphic formats

  • …and more


Physical Characteristics

  • Operates without compressed air

  • Class leading lightened push button open/push to close, simplest ribbon threading cassette system

  • Clutchless bi-directional ribbon drive

  • 5.0” WVGA (800x480) touch screen graphic user interface

  • Universal bracket systems for integrating printer into intermittent and continuous motion packaging machinery
