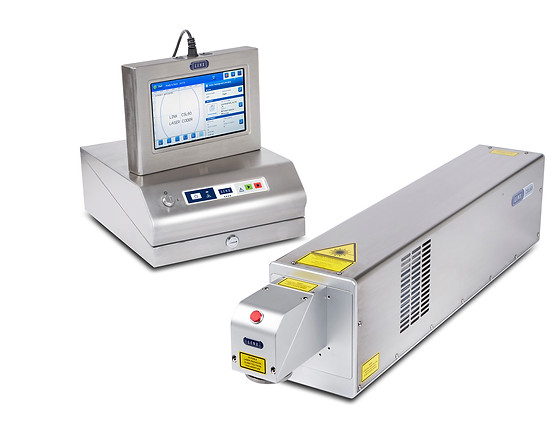

Linx CSL60

Complex coding applications on high speed lines

The Linx CSL60 Laser System marks complex codes at a high resolution onto high-speed lines. The 60 W laser power combined with a powerful processor allows coding onto hard to mark materials such as glass and rubber. Full system IP65 rating makes it a reliable coding solution for harsh production environments such as beverage, automotive, or extrusion.


Key benefits

  • Easy message creation and management of printing parameters with the large color LinxVision® Touch Screen, and LinxVision software

  • Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only

  • Easy line integration – detachable marking head with quick disconnect cables

  • Multiple beam delivery options allow for coding in any orientation


Meet Production Targets

  • A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes, and logos - on fast lines with no compromise on code quality

  • Code up to 70,000 bottles per hour*

  • Reduce running costs and delays with 45,000* hour tube life – one of the longest on the market

  • Service intervals typically twice that of the industry standard

  • No expensive factory air for cooling

Print In More Applications

  • Flip, mirror, or curve text – easily code onto difficult shapes

  • Over 20,000 different configurations to economically meet your coding requirements

  • Wide web applications for large area coding or multiple lines of products

  • Crisp, clear coding on glass, even at high line speeds, with VisiCode®, a unique set of parameters

*tube life and line speed are application dependent

Blue Gear.png

Technical Specifications

  • 60 W CO2 scribing laser coder

  • Line speed: code up to 2100 characters/second; 70,000 bottles/hour; 2952.76ft/min

  • Maximum laser output power 60W

  • Maximum code height - 23.66"

  • Marking field size – up to 17.3" x 23.66"

  • Laser wavelength - 9.3 μm or 10.2 μm or 10.6 μm

  • Laser tube warranty – 2 years

  • Spot size – from 0.004 in to .065 in

  • Marking head rotation – up to 360°

  • Print rotation – up to 360°

  • Code options - Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, custom date and time formats, 2D codes including DotCode.

  • IP rating – full system IP65 rated as option; IP54 as standard

  • Air cooled for both IP54 and IP65 variants.
