LABEL APPLICATORS
Built to Apply
Evolabel applicators deliver precise, reliable label placement across a range of production needs, from high-speed case labeling to corner-wrap and multi-side pallet applications.
BELT
Multi-Position
Application
120/min
Max Rate
The Belt Applicator uses a vacuum belt for fast, precise label placement from the top, bottom, or side—even on lightweight products.
Label & System
Label Size (W x L)
30 × 30 to 116 × 150 mm*
Compatible Printers
D43, T43, T63**
Communication
CANopen
Application
Application Positions
Top, Bottom, Side
Application Rate
Up to 120 packages/min
Max Belt Speed
95 m/min
Apply Distance
Up to 5 mm
Application Method
Vacuum Belt
Operating Requirements
Air Supply
6 bar, clean and dry
Power
Belt G2 — 24 VDC / 3.0 A
Power
Belt G3 — 24 VDC / 2 × 3.0 A
* Belt extension available for labels longer than 150 mm.
** T63 requires belt extension.
BLOWVAC
Contactless
Application
70/min
Max Rate
The BlowVac Applicator uses compressed air and integrated vacuum for precise, contact-free label application, making it ideal for products that require gentle handling.
Application
Application Positions
Top, Side
Application Rate
Up to 70 labels/min
Apply Distance
50–150 mm*
Application Method
Compressed Air
Label & System
Label Size (W x L) D43/T43
76 × 38 to 118 × 100 mm
Label Size (W x L) T63
80 × 40 to 150 × 100 mm
Compatible Printers
D43, T43, T63
Communication
CANopen
Operating Requirements
Air Supply
6 bar, clean and dry
Operating Temperature
5–40°C
Humidity
20–85%
Dimensions (W x H x D)
110 × 270 × 35 mm**
* Apply distance depends on label size.
** Excluding applicator plate.
ETAMP
Electric
Tamp Application
820 mm
Max Apply Distance
An electrically driven tamp solution designed for precise, programmable label placement.
Application
Application Positions
Top, Side
Apply Speed
800 mm/s
Apply Distance
Up to 820 mm*
Application Method
Electric Tamp
Label & System
Label Size (W x L) D43/T43
30 × 20 to 118 × 240 mm
Label Size (W x L) T63
80 × 80 to 178 × 240 mm
Compatible Printers
D43, T43, T63
Communication
EXT1
Operating Requirements
Air Supply
6 bar, clean and dry
Drive System
Stepper Motor
* Maximum apply distance varies by eTamp model.
FLEXWIPE®
Multi-Position
Pallet Labeling
T63 G2
Compatible Printer

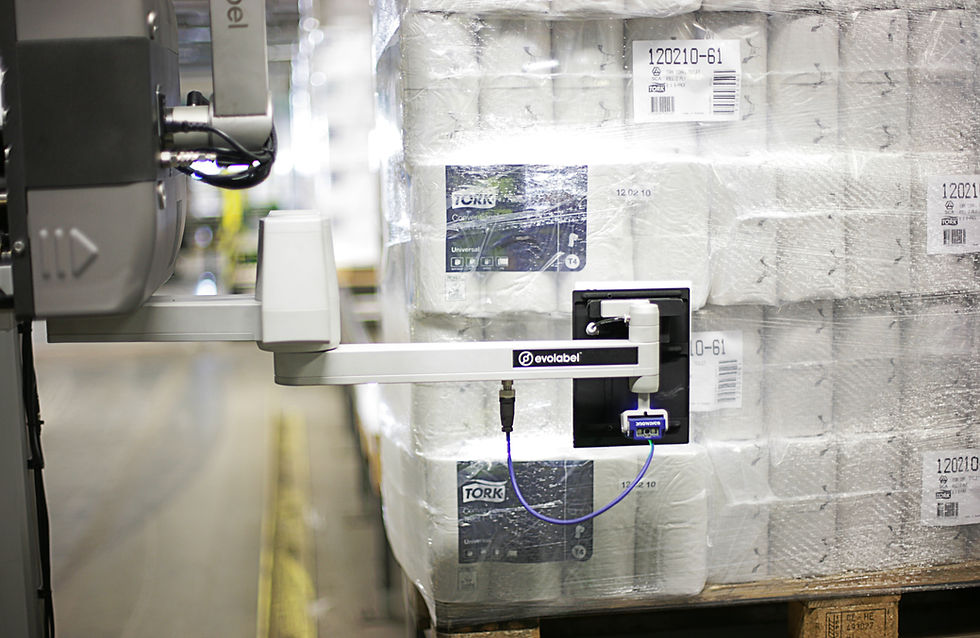

The FlexWipe Pallet Labeling System applies large-format labels to multiple sides of a pallet, supporting automated front, side, and rear labeling with a single system.
Application
Application Positions
Front, Side, Rear
Application Type
Multi-Side Pallet Labeling
Capacity
Exceeds 5 pallets/min*
Application Method
FlexWipe
Label & System
Label Size (W x L)
80 × 43 to 158 × 240 mm
Compatible Printer
T63 G2 SE or PE
Minimum Pallet Separation
750 mm
Operating Requirements
Air Supply
6 bar, clean and dry
Operating Temperature
5–40°C
Humidity
20–85%, non-condensing
Dimensions (W x D x H)
916 × 610 × 2047 mm
System Weight
82 kg**
* Capacity is specified for 2-side labeling.
** FlexWipe, T63 and stand.
QUICKTAMP®
Linear Motion
Tamp Application
Apply Distance
Up to 1000 mm
The QuickTamp uses stepper-motor-driven linear motion for fast, precise top and side label application, with adjustable stroke lengths for packages of varying heights.
Application
​Application Positions
Top, Side
Apply Distance
Up to 1000 mm*
Application Method
Stepper-Motor Tamp
Apply Speed
Varies by configuration**
Label & System
Label Size (W × L) D43/T43
30 × 20 to 118 × 240 mm
Label Size (W × L) T63
115 × 20 to 176 × 240 mm
Compatible Printers
D43, T43, T63
Communication
EXT 1 (RS-232)
Operating Requirements
Air Supply
6 bar, clean and dry
Power
24 VDC / 4.0 A
Operating Temperature
5–40°C
Humidity
20–85%
Dimensions (W x H x D)
214 × 165 × 205 mm***
Maxiumum Noise Level
65 dB****
* Maximum apply distance varies by QuickTamp model.
** Apply speed depends on tamp rod length and pad size.
*** Chassis only.
**** During apply sequence.
TAMP
Pneumatic
Tamp Application
120/min
Max Rate
The Tamp Applicator provides precise top and side label placement using a fast pneumatic motion, with flexible label sizes for a range of product and case applications.
Application
Application Positions
Top, Side
Application Rate
Up to 120 labels/min
Application Distance
Up to 70 mm
Application Method
Pneumatic Tamp
Label & System
Label Size (W × L) D43/T43
30 × 20 to 118 × 200 mm
Label Size (W × L) T63
115 × 20 to 178 × 200 mm
Compatible Printers
D43, T43, T63
System Features
Integrated Vacuum
Independent Vacuum Ejectors
Interface
Plug-and-Play
Design
Pneumatic
WIPE G2
Multi-Position
Wipe Application
80/min
Max Rate
The Wipe G2 uses a stepper-motor-driven arm for fast, flexible label application, supporting top, front, rear, side, two-side, and corner-wrap labeling.
Application
Application Positions
Top, Front, Rear, Side
Application Rate
Up to 80 labels/min
Max Apply Angle
192º
Application Method
Stepper-Motor Wipe
Application Types
Two-Side, Corner-Wrap
Label & System
Label Size (W × L) D43/T43
30 × 20 to 118 × 240 mm
Communication
EXT 1 (RS-232)
Label Size (W × L) T63
115 × 20 to 176 × 240 mm
Compatible Printers
D43, T43, T63
Operating Requirements
Air Supply
6 bar, clean and dry
Power
24 VDC / 4.0 A
Operating Temperature
5–40°C
Humidity
20–85%
Dimensions (W x H x D)
(50 + S) × 345 × 218 mm*
Maxiumum Noise Level
65 dB****
WIPE90 G2
90º Motion
Wipe Application
80/min
Max Rate
A stepper-motor-driven applicator designed for precise front, rear, side, and corner-wrap labeling in automated production environments.
Application
Application Positions
Front, Rear, Side
Application Rate
Up to 80 labels/min
Max Apply Angle
192º
Application Method
Stepper-Motor Wipe
Application Types
Two-Side, Corner-Wrap
Label & System
Label Size (W × L) D43/T43
30 × 20 to 118 × 150 mm
Communication
EXT 1 (RS-232)
Label Size (W × L) T63
115 × 20 to 178 × 150 mm
Compatible Printers
D43, T43, T63
Operating Requirements
Air Supply
6 bar, clean and dry
Power
24 VDC / 4.0 A
Dimensions (W x H x D)
(50 + S) × 345 × 218 mm*
